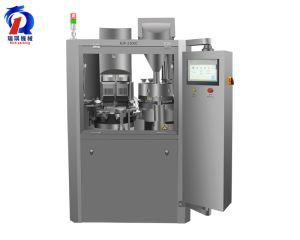

This capsule filling machine integrates 7 major technological innovations and holds 2 invention patents. It is designed to fill hollow capsules of all standard sizes, making it ideal for automatic capsule filling machine for powder and granules applications. Operating continuously, the machine completes the entire production cycle — including capsule feeding, separation, filling, locking, rejection of unqualified capsules, and final product discharge — with an impressive output of 90,000 capsules per hour. Engineered for high precision, it ensures accurate dosing, smooth operation, and a dust-free environment that fully complies with cGMP standards. This makes it an ideal capsule filling machine pharmaceutical solution for medicines, as well as a wide range of nutritional supplements.
This machine is suitable for empty hard gelatine capsules, featuring a modular design for easy operation and stability, comprehensive safety protection compliant with cGMP, and a high-precision German Zeiss indexing system for accurate dosing. Its intelligent lubrication reduces maintenance, while the patented turntable ensures a dust-free environment and quick mold changeovers for maximum efficiency.
1. Scientific Structural Design
The machine features a modular structure designed for reliability and ease of use. This fully automatic capsule filling machine combines ergonomic design with robust engineering, allowing simple operation, quick maintenance, and exceptional stability even under continuous production conditions.
2. Comprehensive Safety Protection
Safety is built into every aspect of the system - from capsule feeding and gate control to powder addition and emergency stop response. The automatic capsule filler machine ensures complete operator and product protection, fully aligned with international cGMP and pharmaceutical safety standards.
3. High-Precision Indexing System
Equipped with a German Zeiss optical Indexing Head offering 3-arc-second precision, the indexing shaft of this capsule filler machine is machined in a single process to maintain perfect concentricity and balance. This advanced optical indexing system guarantees stable motion, accurate dosing (≤3% deviation), and long-term consistency in capsule production.
4. Intelligent Lubrication System
An automated timed oil-supply system delivers precise lubrication to the cam drive, ensuring smooth motion, reduced wear, and extended service life. The system operates cleanly and quietly, meeting cGMP standards while minimizing manual maintenance.
5. Patented Turntable Design
The patented turntable employs imported SIL silicone sealing rings that block powder intrusion, ensuring a dust-free and airtight environment. Its dual-axis horizontal design uses PTFE oil-free bearings, requiring no lubrication for life. Thanks to its modular layout, mold changes can be completed within 15 minutes-maximizing uptime and efficiency.
|
Machine Name |
Hard Capsule Filling Machine |
|
Production Capacity |
90,000 pcs/h |
|
Net Weight |
1,150 kg |
|
Machine Dimensions |
1,050 mm × 870 mm × 1,950 mm |
|
Power Supply |
380/220V, 50 Hz |
|
Total power |
5.5 kW |
|
Vacuum |
40 m3/h - 0.04 - 0.08 Mpa |
|
Dust Extraction |
24.5 Kpa, 210 m³/h |
|
Operating Noise |
<75 dB(A) |
|
Filling Rate |
Empty capsule 99.9%. Full capsule 99.8% |
|
Applicable Capsules |
Size #000, 00, 0, 1, 2, 3, 4, 5 |
|
Dosing Accuracy |
Western pharmaceutical medicine: ±3% Traditional Chinese medicine: ±4% |
|
Filling Range |
Power, granules, pellets, tablets |
|
Packaging Dimensions |
1,495 mm × 1,260 mm × 2,150 mm |
